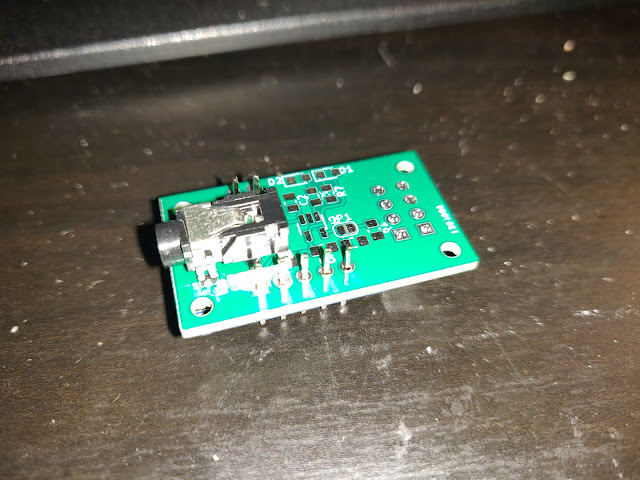

Już jest pierwsza wersja PCB :-)
Ostatnia wersja kodu:
//ADS1115 - with calibration
#include <tinysnore.h>
#include<ADS1115_WE.h> //liba was edited to give raw data instead of mV
#include<Wire.h>
#include <EEPROM.h>
#define I2C_ADDRESS_1 0x48
#define I2C_ADDRESS_2 0x49
ADS1115_WE adc(I2C_ADDRESS_1);
ADS1115_WE adc2(I2C_ADDRESS_2);
int result = 0;
int result2 = 0;
int led = 1; //1 - Trinket, 13 - Arduino
int sensitivity;
int sensitivityNow;
int leftNow;
int rightNow;
int leftOn; //left paddle treshold
int leftOnAbs; //left paddle absolute value treshold
int leftOff; //left paddle off treshold
int rightOn; //right paddle treshold
int rightOnAbs; //right paddle absolute value treshold
int rightOff; //right paddle off treshold
int hysteresis = 7; //hysteresis
int configMode = 0;
int time1; //time for setup mode purpose
int time2; //time for setup mode purpose
void setup() {
pinMode(led, OUTPUT);
Wire.begin();
while(!adc2.init()){
blink(20);
delay(500);
}
while(!adc.init()){
blink(40);
delay(500);
}
EEPROM.get(0,sensitivity);
EEPROM.get(2,leftOn);
EEPROM.get(4,leftOff);
EEPROM.get(6,rightOn);
EEPROM.get(8,rightOff);
adc.setVoltageRange_mV(ADS1115_RANGE_0256); //amplifier gain
adc.setCompareChannels(ADS1115_COMP_0_1); //differential measurement
adc.setConvRate(ADS1115_860_SPS); //samples pre second
adc.setMeasureMode(ADS1115_CONTINUOUS); //Continous mode
adc.setAlertPinMode(ADS1115_ASSERT_AFTER_1); //after how many measurments ALRT output is set
adc.setAlertModeAndLimit_V(ADS1115_MAX_LIMIT, leftOn, leftOff); //Comparator values Hightreshold then LowTreshold
adc.setAlertPol(ADS1115_ACT_HIGH); //ALRT polarity
adc2.setVoltageRange_mV(ADS1115_RANGE_0256); //amplifier gain
adc2.setCompareChannels(ADS1115_COMP_0_1); //differential measurement
adc2.setConvRate(ADS1115_860_SPS); //samples pre second
adc2.setMeasureMode(ADS1115_CONTINUOUS); //Continous mode
adc2.setAlertPinMode(ADS1115_ASSERT_AFTER_1); //after how many measurments ALRT output is set
adc2.setAlertModeAndLimit_V(ADS1115_MAX_LIMIT, rightOn, rightOff); //Comparator values Hightreshold then LowTreshold
adc2.setAlertPol(ADS1115_ACT_HIGH); //ALRT polarity
result = adc.getResult_mV();
result2 = adc2.getResult_mV();
if ((result > 20) && (result2 > 20)){
configMode = 1;
time1 = millis();
}
}
void loop() {
if (configMode){
config_loop();
}
else {
main_loop();
}
}
void main_loop() {
//snore lib for ATTINY85 - uC to sleep mode
snore(10000);
}
void config_loop(){
result = adc.getResult_mV();
result2 = adc2.getResult_mV();
time2 = millis();
//autocalibration
leftOn = result + sensitivity; //measure free state and do the calibration
if (leftOn >= 0){
leftOff = leftOn - hysteresis;
}
else {
leftOnAbs = abs(leftOn);
leftOff = -hysteresis - leftOnAbs;
}
rightOn = result2 + sensitivity;
if (rightOn >= 0){
rightOff = rightOn - hysteresis;
}
else {
rightOnAbs = abs(rightOn);
rightOff = -hysteresis - rightOnAbs;
}
//exit after 10s and write sensitivity
if ((time2-time1)>10000){
blink(sensitivity);
EEPROM.put(0,sensitivity); //store sensitivity permanent when leaving
EEPROM.put(2,leftOn);
EEPROM.put(4,leftOff);
EEPROM.put(6,rightOn);
EEPROM.put(8,rightOff);
adc.setAlertModeAndLimit_V(ADS1115_MAX_LIMIT, leftOn, leftOff);
adc2.setAlertModeAndLimit_V(ADS1115_MAX_LIMIT, rightOn, rightOff);
configMode = 0;
}
//set paddle status
if ((result > 20) && (leftNow == 0)) {
leftNow = 1;
sensitivity = sensitivity + 10;
}
if (result < 10) {
leftNow = 0;
}
if ((result2 > 20) && (rightNow == 0)) {
rightNow = 1;
sensitivity = sensitivity - 10;
}
if (result2 < 10) {
rightNow = 0;
}
//set sensitivity
if (sensitivity != sensitivityNow)
switch (sensitivity){
case 0:
sensitivity = 10;
time1 = millis();
break;
case 10:
sensitivityNow = sensitivity;
blink(sensitivityNow);
time1 = millis();
break;
case 20:
sensitivityNow = sensitivity;
blink(sensitivityNow);
time1 = millis();
break;
case 30:
sensitivityNow = sensitivity;
blink(sensitivityNow);
time1 = millis();
break;
case 40:
sensitivityNow = sensitivity;
blink(sensitivityNow);
time1 = millis();
break;
case 50:
sensitivityNow = sensitivity;
blink(sensitivityNow);
time1 = millis();
break;
case 60:
sensitivityNow = sensitivity;
blink(sensitivityNow);
time1 = millis();
break;
case 70:
sensitivity = 60;
time1 = millis();
break;
default:
sensitivity = 10;
time1 = millis();
break;
}
}
void blink(int amount){
for(int x = 0; x < amount; x = x+10){
digitalWrite(led, HIGH);
delay(50);
digitalWrite(led, LOW);
delay(200);
}
}
